05/15/2015 - MOS 6502 CPU EMULATOR IN C

This is my C++ emulator of the MOS Technology 6502 CPU. The code emulates a fully functional 6502 CPU and it seems to be pretty fast too. Some minor tricks have been introduced to greatly reduce the overall execution time.

Interrupt and bus read/write operations are emulated as well.

Github repo:

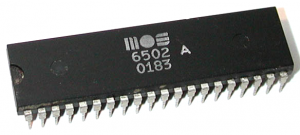

What's a 6502???

Here a brief descrption:

Main features:

Still to implement

The emulator was extensively tested against this test suite:

and in parallel emulation with fake6502

so expect nearly 100% compliance with the real deal... at least on the normal behavior: as I said stuff like illegal opcodes or hardware glitches are currently not implemented.

Why yet another 6502 emulator?

Just for fun :). This CPU (and its many derivatives) powered machines such as:

and many other embedded devices still used today. You can use this emulator in your machine emulator project. However cycle accuracy is not yet implemented so mid-frame register update tricks cannot be reliably emulated.

Some theory behind emulators: emulator types

You can group all the CPU emulators out there in 4 main categories:

Graph based emulators are the most accurate as they emulate the connections between transistors inside the die of the CPU. They emulate even the unwanted glitches, known and still unknown. However the complexity of such emulators is non-linear with the number of transistors: in other word, you don't want to emulate a modern Intel quad core using this approach!!!

for an example check this out:

The PLA/microcode based are the best as they offer both speed and limited complexity. The switch-case based are the simpler ones but also the slowest: the opcode value is thrown inside a huge switch case which selects the code snippet to execute; compilers can optimize switch case to reach near O(log(n)) complexity but they hardly do it when dealing with sparse integers (like most of the CPU opcode tables).

Emulator features

My project is a simple jump-table based emulator: the actual value of the opcode (let's say 0x80) is used to address a function pointer table, each entry of such table is a C++ function which emulates the behavior of the corresponding real instruction.

All the 13 addressing modes are emulated:

// addressing modes
uint16_t Addr_ACC(); // ACCUMULATOR
uint16_t Addr_IMM(); // IMMEDIATE
uint16_t Addr_ABS(); // ABSOLUTE
uint16_t Addr_ZER(); // ZERO PAGE
uint16_t Addr_ZEX(); // INDEXED-X ZERO PAGE
uint16_t Addr_ZEY(); // INDEXED-Y ZERO PAGE
uint16_t Addr_ABX(); // INDEXED-X ABSOLUTE
uint16_t Addr_ABY(); // INDEXED-Y ABSOLUTE
uint16_t Addr_IMP(); // IMPLIED
uint16_t Addr_REL(); // RELATIVE
uint16_t Addr_INX(); // INDEXED-X INDIRECT
uint16_t Addr_INY(); // INDEXED-Y INDIRECT
uint16_t Addr_ABI(); // ABSOLUTE INDIRECT

All the 151 opcodes are emulated. Since the 6502 CPU uses 8 bit to encode the opcode value it also has a lot of "illegal opcodes" (i.e. opcode values other than the designed 151). Such opcodes perform weird operations, write multiple registers at the same time, sometimes are the combination of two or more "valid" opcodes. Such illegals were used to enforce software copy protection or to discover the exact CPU type.

The illegals are not supported yet, so instead a simple NOP is executed.

Inner main loop

It's a classic fetch-decode-execute loop:

while(start + n > cycles && !illegalOpcode)
   // fetch
   opcode = Read(pc++);

   // decode
   instr = InstrTable[opcode];

   // execute

The next instruction (the opcode value) is retrieved from memory. Then it's decoded (i.e. the opcode is used to address the instruction table) and the resulting code block is executed.

Public methods

The emulator comes as a single C++ class with five public methods:

mos6502(BusRead r, BusWrite w);

it's the class constructor. It requires you to pass two external functions:

uint8\_t MemoryRead(uint16\_t address);
void MemoryWrite(uint16\_t address, uint8\_t value);

respectively to read/write from/to a memory location (16 bit address, 8 bit value). In such functions you can define your address decoding logic (if any) to address memory mapped I/O, external virtual devices and such.

void NMI();

triggers a Non-Mascherable Interrupt request, as done by the external pin of the real chip

void IRQ();

triggers an Interrupt ReQuest?, as done by the external pin of the real chip

void Reset();

performs an hardware reset, as done by the external pin of the real chip

void Run(uint32\_t n);

It runs the CPU for the next 'n' machine instructions.
